A Simple Introduction to Hidden Markov Models

Wesam Elshamy @ Diagnoss

Motivating Example*
  • How to estimate average temp 1,000 years ago?
  • Can't measure directly ... no records too
  • Solution: Use indirect evidence

* A Revealing Introduction to Hidden Markov Models -- Mark Stamp 2018

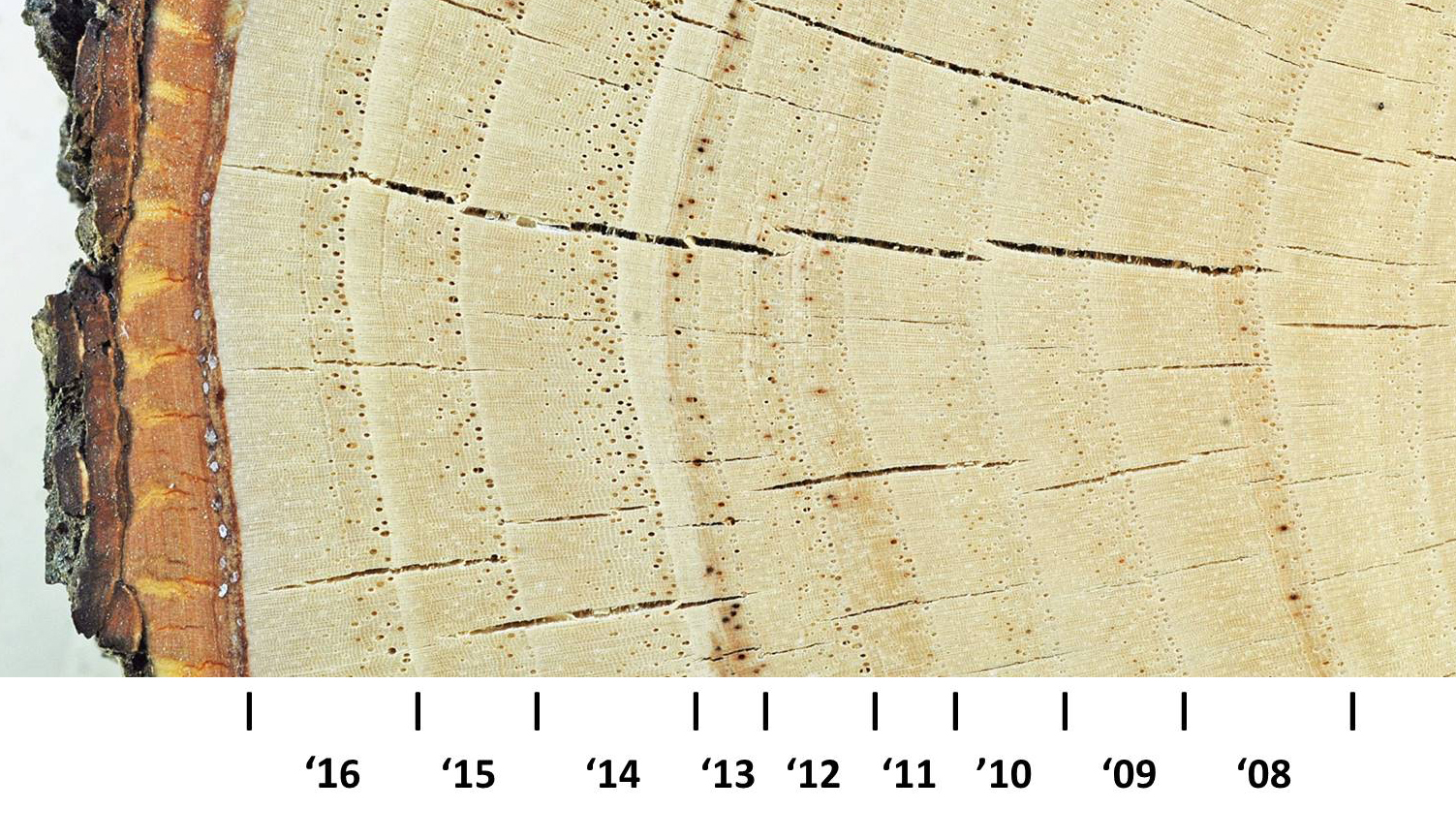

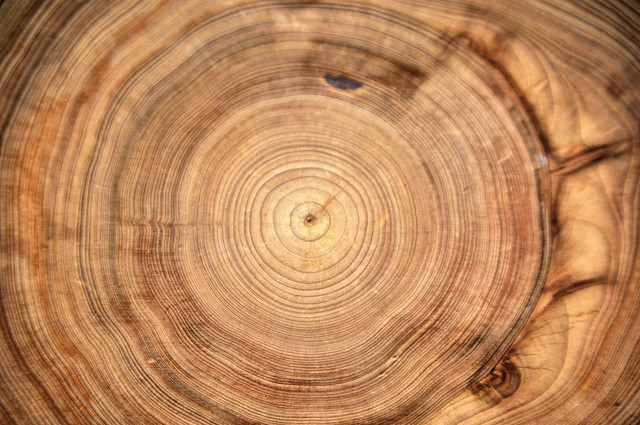

  • Each year, a tree grows new cells over old ones
  • Creating one light and one dark growth rings
  • Air temp affects size of growth rings

  • High temps (usually) lead to larger rings
  • Other factors affect ring size
  • Ring size is observed
  • Temp is hidden

Emission probabilities
  • Temp effect on ring size is not deterministic
  • Only Hot and Cold temps
  • Only Small, Medium and Large ring sizes

$$ \begin{array}{ccc} & & \begin{array}{ccc} S & \quad M \quad & L \end{array}\\ & \begin{array}{c} H\\ C\end{array} & \left[ \begin{array}{ccc} 0.1 & 0.4 & 0.5\\ 0.7 & 0.2 & 0.1 \end{array} \right] \end{array} $$

State Transition Matrix

We also know probability of:

  • Hot year → Hot year = 0.7
  • Cold year → Cold year = 0.6

$$\begin{array}{cc} & & \begin{array}{ccc} H & \quad C\end{array}\\ & \begin{array}{c} H\\ C\end{array} & \left[ \begin{array}{cc} 0.7 & 0.3\\ 0.4 & 0.6 \end{array} \right]\\ \\ & \pi= & \left[\begin{array}{cc}0.6 & 0.4\end{array}\right] \end{array} $$

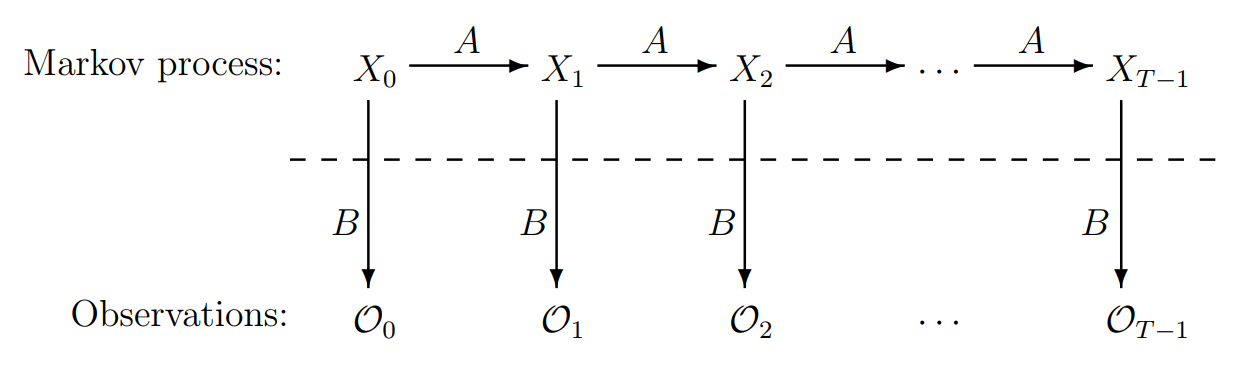

HMM Notation

$$\pi= \left[\begin{array}{cc}0.6 & 0.4\end{array}\right] \quad \text{Initial state} \\ A = \left[ \begin{array}{cc} 0.7 & 0.3\\ 0.4 & 0.6 \end{array} \right] \quad \text{State transition} \\ B = \left[ \begin{array}{ccc} 0.1 & 0.4 & 0.5\\ 0.7 & 0.2 & 0.1 \end{array} \right] \quad \text{Emission} $$


HMM Problem
  • Given tree rings $$\mathcal{O} = (S, M, S, L)$$
  • What were the temps on those four years?

Probability temps HHCC generating rings SMSL

$$ P(HHCC) = 0.6(0.1)(0.7)(0.4)(0.3)(0.7)(0.6)(0.1) = 0.000212 $$
$$\pi= \left[\begin{array}{cc}0.6 & 0.4\end{array}\right] \quad \text{Initial state} \\ A = \left[ \begin{array}{cc} 0.7 & 0.3\\ 0.4 & 0.6 \end{array} \right] \quad \text{State transition} \\ B = \left[ \begin{array}{ccc} 0.1 & 0.4 & 0.5\\ 0.7 & 0.2 & 0.1 \end{array} \right] \quad \text{Emission} $$

Probability of each state sequence generating SMSL
$$ \begin{array}{ll} \text{state} & \text{probability}\\ \hline HHHH & .042787\\ HHHC & .003635\\ HHCH & .073320\\ HHCC & .022017\\ HCHH & .005193\\ HCHC & .000415\\ HCCH & .031364\\ HCCC & .009451\\ CHHH & .114031\\ CHHC & .009762\\ CHCH & .195451\\ CHCC & .058573\\ CCHH & .048811\\ CCHC & .004154\\ CCCH & .293073\\ CCCC & .087963\\ \hline \end{array} $$

Method 1
State sequence with max probability $$ P(CCCH)= .293073$$
Method 2
State with max probability at each step
$$ \begin{array}{lllll} \hline & 0 & 1 & 2 & 3\\ \hline P(H) & 0.188182 & 0.519576 & 0.228788 & 0.804029\\ P(C) & 0.811818 & 0.480424 & 0.771212 & 0.195971\\ \hline \end{array} $$
Most likely sequence of states CHCH

Method depends on application

Problem 1
$$ \begin{array}{rl} \text{Given:} & \begin{array}{rl} \pi & \text{Initial states prop}\\ A & \text{State transition prop}\\ B & \text{Emission prop}\\ \mathcal{O}_0, \mathcal{O}_1, \dots & \text{Observation sequence} \end{array}\\ \hline \text{Find:} & \text{Probability of given observation sequence} \end{array} $$

Solution
$$ P(\mathcal{O|\lambda}) = \sum_X \pi_{x_0}b_{x_0}(\mathcal{O}_0) a_{x_0,x_1}b_{x_1}(\mathcal{O}_1) \dots a_{x_{T-2},x_{T-1}}b_{x_{T-1}}(\mathcal{O}_{T-1})\\ 2TN^T \text{ multiplications} \qquad N: \text{ Number of states} $$
  • T=100, N=10, that will be 2E+102 multiplications
  • Computationally infeasible for practical problems
  • Instead, use forward algorithm to compute
  • Computes partial observations and reuses them (DP)
  • Requires TN2 mults instead (1E+4 vs 2E+102)

Problem 2
$$ \begin{array}{rl} \text{Given:} & \begin{array}{rl} \pi & \text{Initial states prop}\\ A & \text{State transition prop}\\ B & \text{Emission prop}\\ \mathcal{O}_0, \mathcal{O}_1, \dots & \text{Observation sequence} \end{array}\\ \hline \text{Find:} & \text{Optimal state sequence (we did that)} \end{array} $$

Solution
$$ \operatorname*{argmax}_X P(\mathcal{O}|\lambda) $$
  • Maximize expected number of correct states (Method 2)
  • Not state sequence with highest probability
  • Use backward algorithm, also TN2 complexity
  • Starts at end of path and works back to beginning

Problem 3
$$ \begin{array}{rl} \text{Given:} & \begin{array}{rl} \mathcal{O}_0, \mathcal{O}_1, \dots & \text{Observation sequence}\\ N & \text{Number of states}\\ M & \text{Number of observation symbols}\\ \end{array}\\ \hline \text{Find:} & \begin{array}{rl} \pi & \text{Initial states prop}\\ A & \text{State transition prop}\\ B & \text{Emission prop}\\ \end{array} \end{array} $$

Solution
$$ \operatorname*{argmax}_{\pi,A,B} P(\mathcal{O}|\lambda) $$
  • Tune π, A, B to max probability of observations
  • Initialize π, A, B with best guess (random?)
  • Use forward-backward algorithm to compute observation props
  • Update π, A, B using new prop values
  • Repeat if P(O|λ) increased

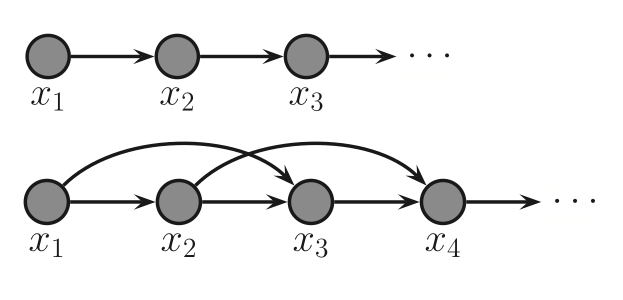

Second order Markov chains
  • States have longer memory
  • Each state depends on two preceding states
  • Could improve performance
  • Complicates problem solving

When to use HMM

Time series problems with hidden, discrete states

Speech recognition

  • Given: audio recordings of words
  • Find: hidden states (words: yes, no)

When to use HMM

Time series problems with hidden, discrete states

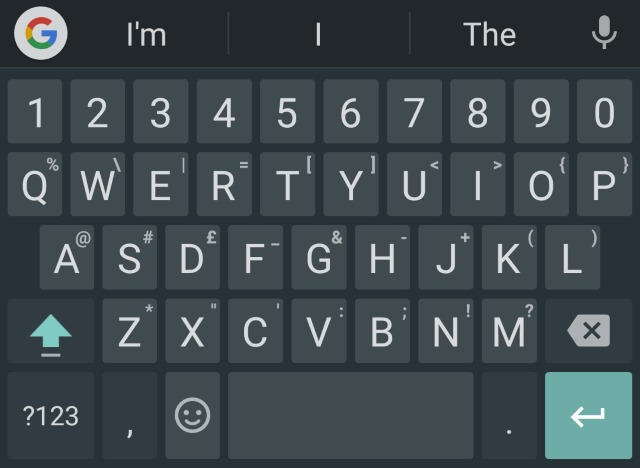

Next word prediction

  • Given: typed words
  • Find: hidden sentence states
  • Needs higher order models for good performance
